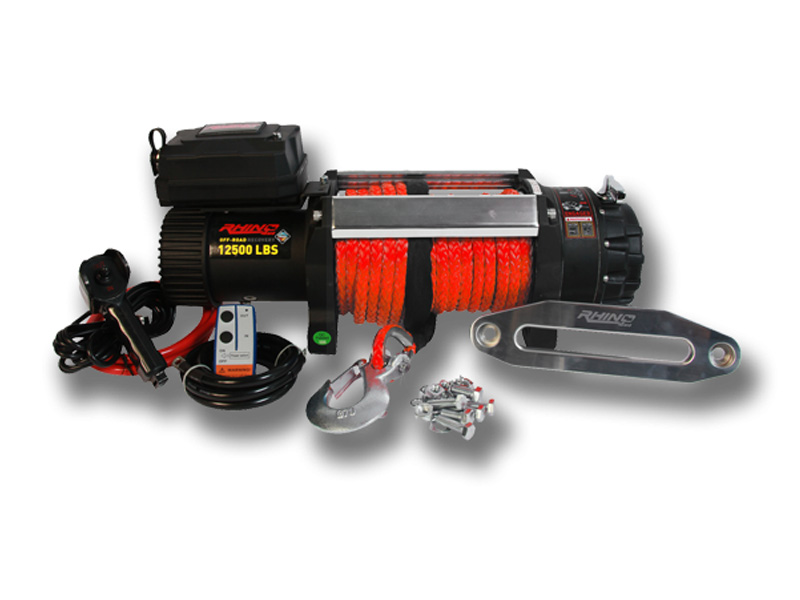

Rhino 4x4 12500lbs Winch

Rhino 4x4 12500lbs Winch

Specifications

Rated line pull: 12500 Lbs (5670kgs) single line
Motor: Series wound 6.0 hp /4.4kw,12V DC
Gear Train: 3 stage planetary
Gear ratio: 262:1
Clutch: Sliding Ring gear
Braking action: Automatic in drum
Fairlead: Aluminum hawse fairlead for synthetic rope
Synthetic rope: Ø11mm x 24m

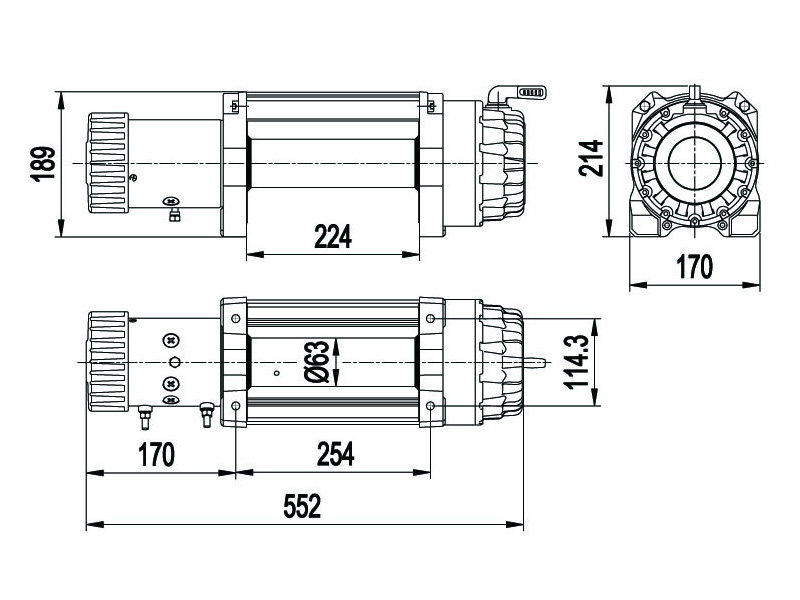

Drum size: 2.5" x 9.0"(63mm x 224mm)
Dimensions: 23" x 6.7" x 8.4"( 584mm x 170mm x 214mm)
Mounting bolt pattern: 10" x 4.5"(254mm x 114.3mm)
Battery: Recommended 650 CCA minimum for winching 32 square mm,72"(1.83m)
N.W: 86lbs (39kgs)
Packing: 620mm x 200mm x 390mm

With all the included features, great price and added looks its hard to go past a rhino winch.

  • Tough heavy duty materials
  • 12500 lbs
  • Dyneema rope
  • Wired and integrated wireless remote control
  • Internal braking system
  • Robust gearing
  • IP68 rated to ensure no dust and water ingress
  • Backed by our Huge 5 year warranty
