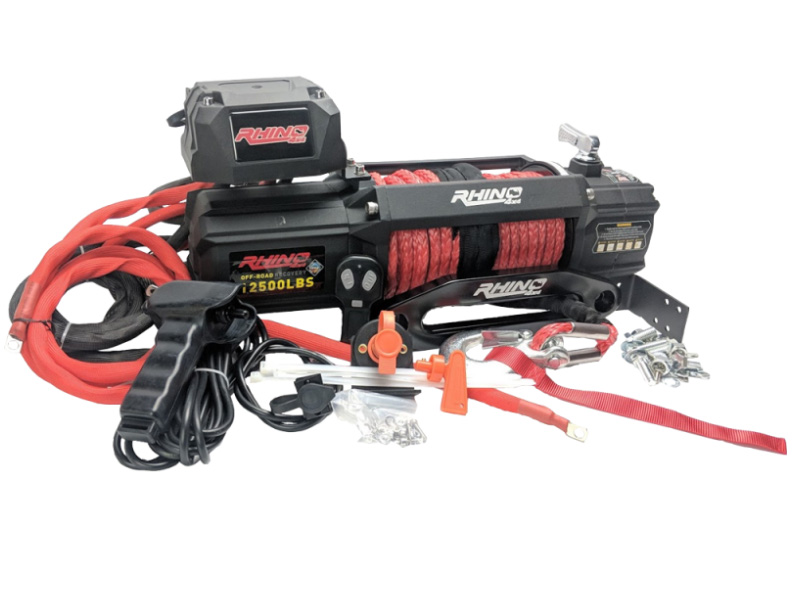

Rhino 4x4 A12000lbs Winch

Rhino 4x4 A12000lbs Winch

Specifications

Rated Line Pull: 12000 Lbs (5670kgs) single line.
Motor: Series wound 6.0 hp /4.4kw,12V DC
Gear Train: 3 stage planetary
Gear Ratio: 265:1
Clutch: Sliding ring gear
Braking Action: Automatic in drum
Fairlead: Aluminum hawse fairlead for synthetic rope
Synthetic Rope: Ø9.5mmX25m
Drum Size: 2.5"×9.0"(63mm×224mm)

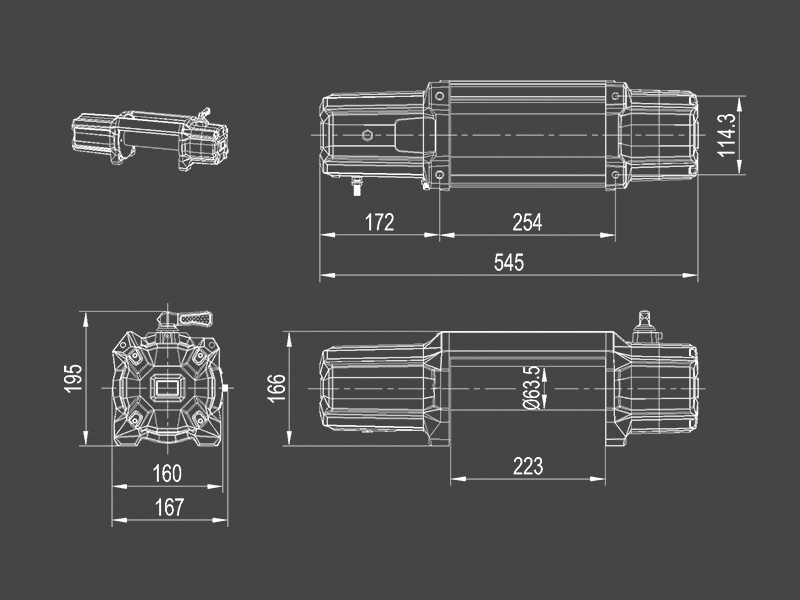

Dimensions: 545mm×160mm×195mm
Mounting Bolt Pattern: 10"×4.5"(254mm×114.3mm)
Battery: 650 CCA minimum for winching 25 square mm,72"(1.83m)
N.W: 27kgs
Packing: 620mm×360mm×260mm

With all the included features, great price and added looks, it's hard to go past a Rhino winch.

  • Tough heavy duty materials
  • 12000 lbs
  • Dyneema rope
  • Wired and integrated wireless remote control
  • Free battery isolator switch with key
  • Power cables pre-insulated to save you time and money during install
  • Standard with remote control plug-in extension cable enabling easy remote mounting of box.
  • Internal braking system
  • Robust gearing
  • IP68 rated to ensure no dust and water ingress
  • Multifold mounting options including vertical over tie rod, and over motor.
  • Backed by our Huge 3-year warranty
